Product Description
Description

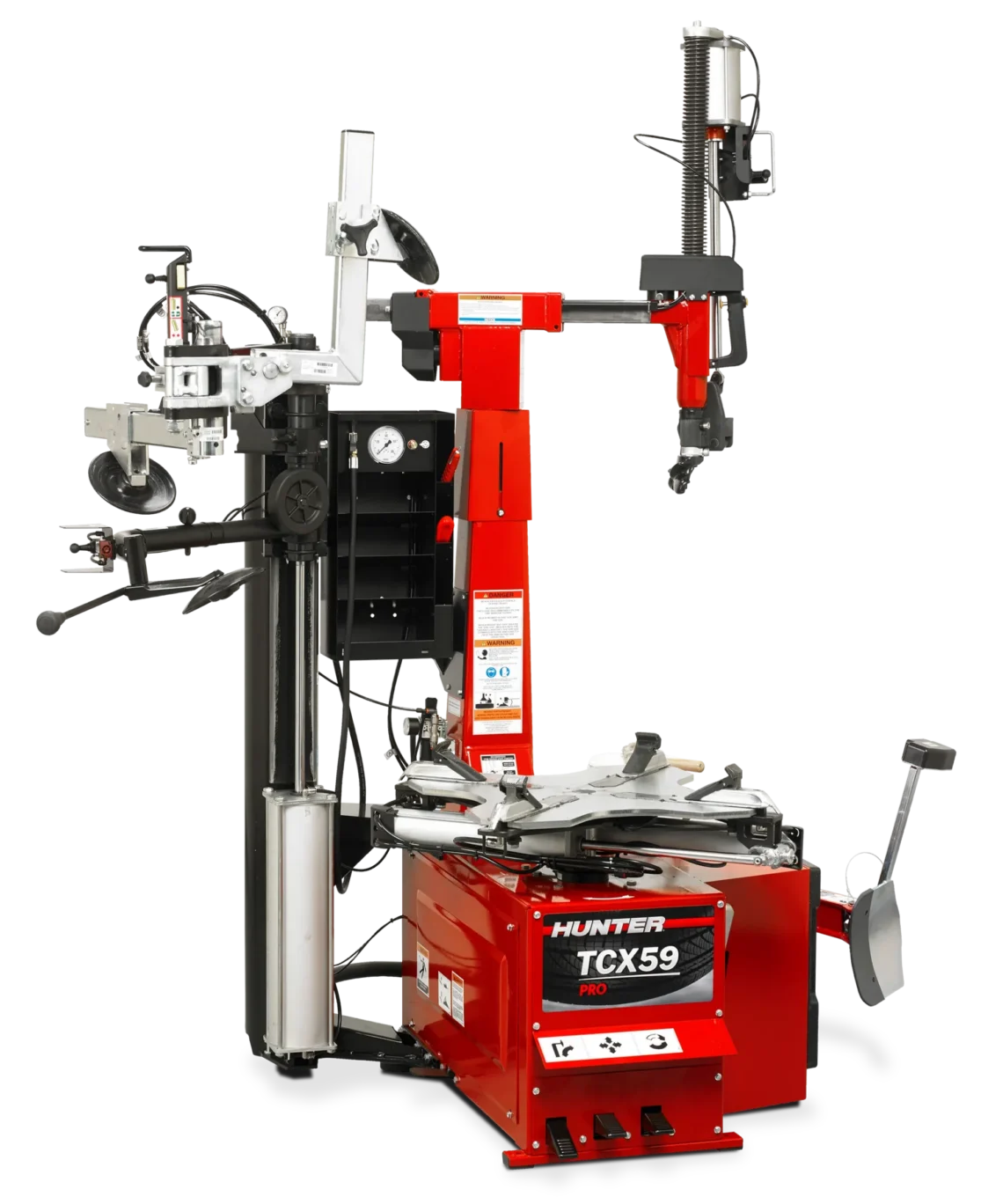

The Hunter TCX59PRO is an advanced automatic swing-arm column tyre changer. It is a heavy-duty machine designed for professional automotive workshops. Featuring a fully automatic space-saving swing-arm column design, the TCX59PRO with its Hybrid leverless tool head, is built to handle a wide range of tyre and rim combinations, including ultra low profile fitments. Powered by a 240V high-torque motor and equipped with a pneumatic clamping system, the TCX59PRO delivers reliable, high-performance tyre changing capability in a robust, heavy-duty package.
Features
- Fully automatic operation
- Space-saving swing-arm column design operated via foot pedal

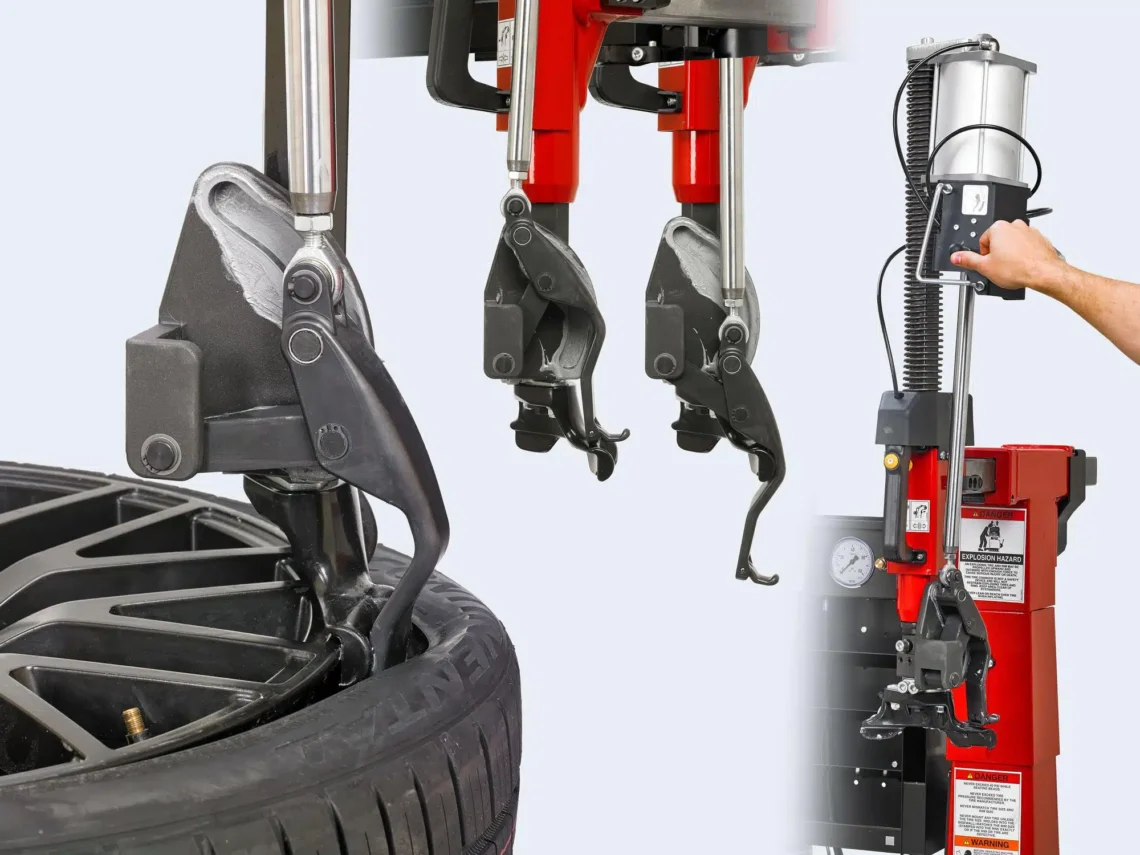

- NEW! Hybrid leverless tool head
- Pneumatic clamping system
- Pneumatic low profile bead press system for low profile tyre and rim combinations
- Demounting with locking lower bead press arm
- Pneumatic PowerOut double-acting bead breaker system
- 26" external clamping capacity
- Two speed turntable controlled by rotation pedal
- Powerful 240V high-torque motor delivering ample power
- FastBlast™ tyre inflation system
- Plastic jaw and mounting head protectors
- Heavy duty sturdy construction
- OEM approved models available
Model Variants
TCX59PRO, TCX57-2-1-U
Specifications
| Specifications | TCX57-2-1-U |
|---|---|
| External Clamping | 12" - 26" |
| Internal Clamping | 14" - 28" |
| Max. Wheel Diameter | 1100 mm (43") |
| Max. Wheel Width | 368 mm (14.5") |
| Rotation Speed | 7 - 17 rpm |
| Operating Pressure | 8 – 10 bar |
| Power Supply | 240V 50/60Hz |
| Net Weight | 475 kg |
Since 1946, when Automotive Hall of Fame inductee Lee Hunter founded Hunter Engineering, the company has built a reputation for innovation and visionary leadership in the application of the newest technologies to automotive under car service.
Hunter’s award-winning research and development team of mechanical, electrical and software engineers is responsible for hundreds of patented and exclusive features that make Hunter products the most productive under car service equipment available.
OPTIONAL EQUIPMENT & ACCESSORIES
Accessories
- [RP11-8-11400149] Pneumatic Wheel Lift — Optional pneumatic wheel lift to assist with handling heavy wheels during tyre changing.
