Product Description
Description

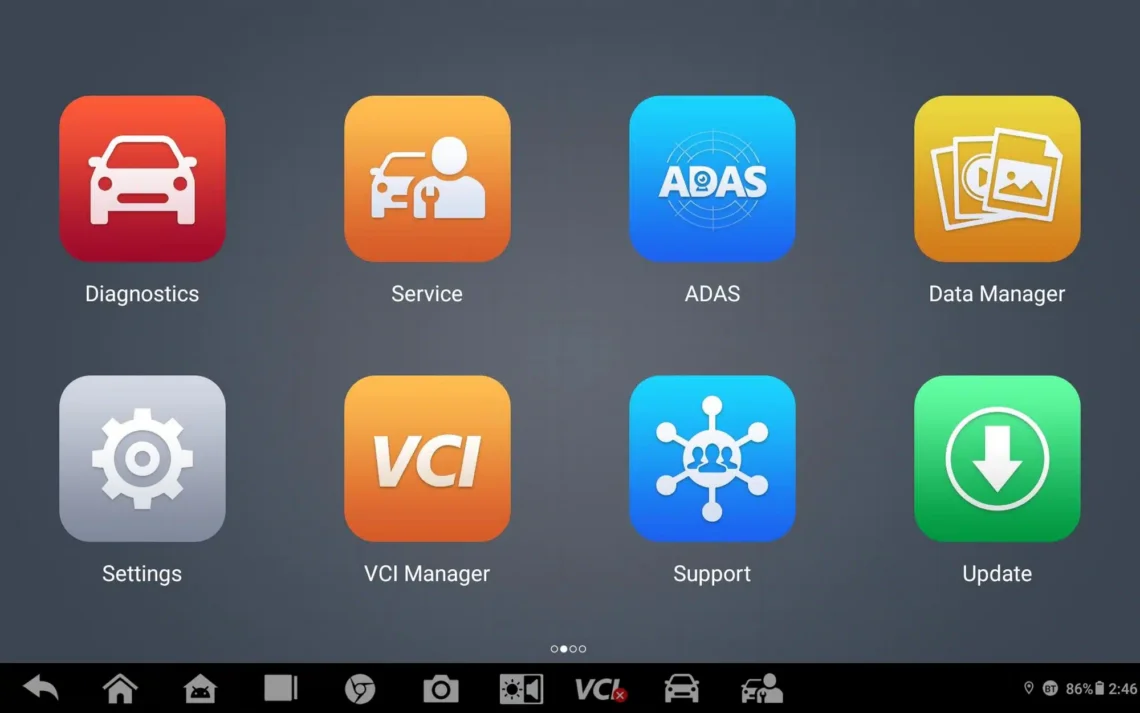

The MS906MAX is a cost-effective and versatile advanced diagnostic tool featuring Android 10.0 operating system with 4GB RAM and 128GB storage. This professional-grade scan tool offers extensive vehicle coverage for U.S., Asian, and European vehicles, providing comprehensive diagnostic capabilities through its 10.1-inch touchscreen interface. Designed for automotive technicians and workshops requiring reliable diagnostic solutions with modern connectivity options including Wi-Fi updates and remote expert support.
Features
- Extensive vehicle coverage for U.S., Asian, and European vehicles
- All-systems diagnostics with read and erase codes capability
- View freeze frame data and live data graphing
- Bi-directional active tests and special functions
- 40-plus service and maintenance tasks menu
- Coding and adaptations with hidden functions
- Latest communication protocols support including DoIP and CAN FD
- AUTO SCAN 2.0 for faster all system scanning
- Remote Expert capability for technical support
- 13MP rear camera for documentation
- Wi-Fi connectivity for updates
- Android 10.0 operating system
Specifications
| Specifications | MS906MAX |
|---|---|
| Operating System | Android 10.0 |
| Processor | Octa-core Processor |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 10.1-inch LCD capacitive touchscreen with 1920 x 1200 resolution |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac), USB 2.0 (2 USB TYPE-A ports and a Mini USB port), BT 5.0 (BR/EDR + BLE), SD Card (Support up to 64GB) |
| Camera | Rear: 13 Megapixel |
| Power and Battery | 11600 mAh 3.85 V lithium-polymer battery |
| Input Voltage | 12 V/3 A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -10 to 60°C (14 to 140°F) |
Autel is one of the world’s leading manufacturers and suppliers of professional diagnostic tools, equipment and accessories in the automotive aftermarket.
Since their foundation, they have been committed to creating maximum long-term value to customers worldwide by providing quality assured, easy-to-use, cost-effective and innovative products.
Autel make every effort to understand their endusers’ needs and translate those needs into superior products by maximising research and development and manufacturing capabilities.
