Product Description
Description

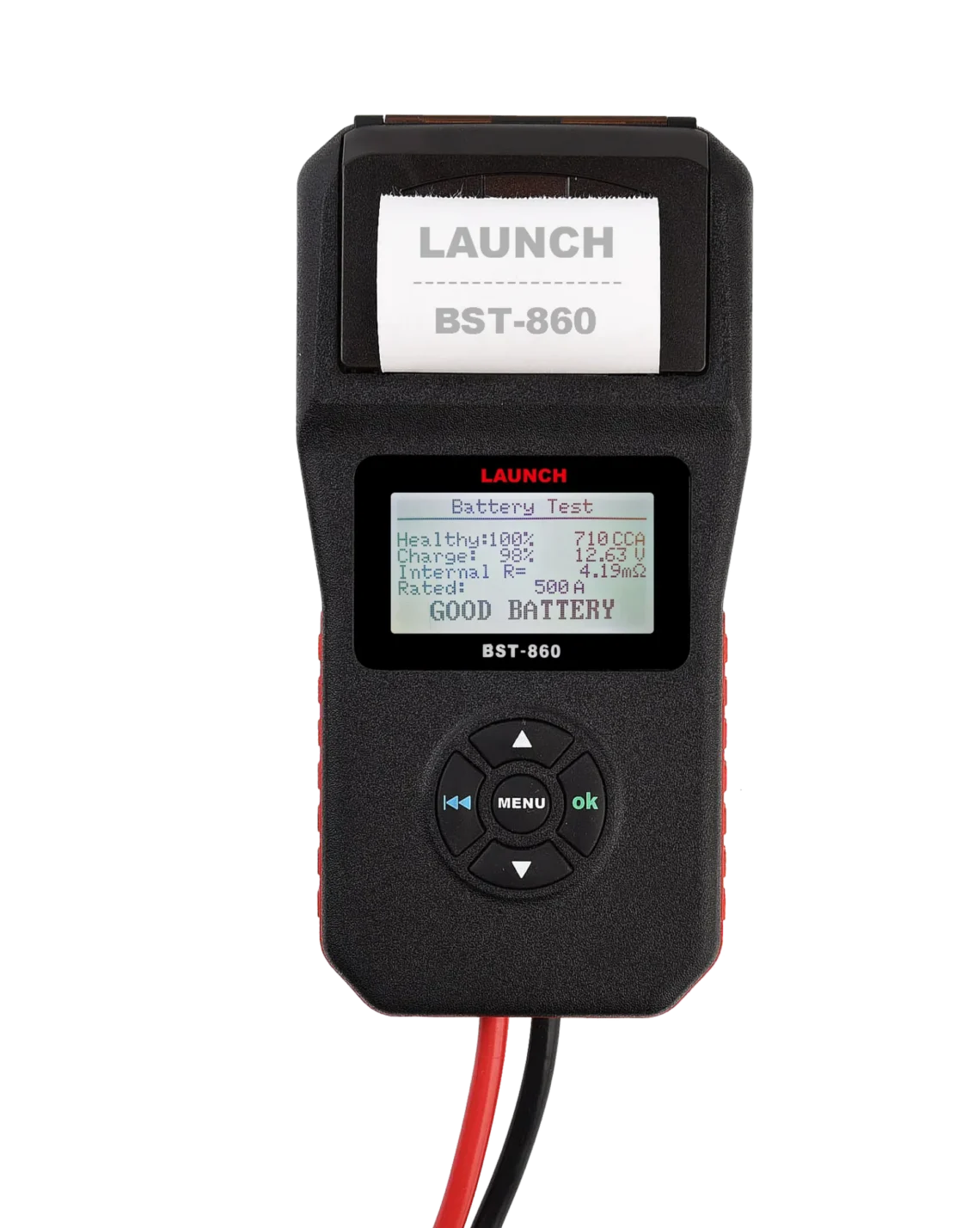

The Launch BST series battery testers are plug-to-play diagnostic tools designed for comprehensive battery system testing across multiple vehicle types including cars, boats, motorcycles, lawn mowers and commercial vehicles. These compact handheld units can quickly assess complete battery systems and generate detailed health reports within 3 seconds, supporting both 12V and 24V systems with various battery types including regular flooded, gel, AGM, EFB and lithium batteries.
Features
- 6 battery & electrical test functions: Ripple Detection, Battery Test, Electric Current Test, Starter Test, Charging System Test and Voltage Test
- International measurement standards support: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
- Generate health reports within 3 seconds
- Built-in thermal printer (BST-860S) or QR scan function for mobile viewing
- Batch inspection capability for continuous and repeated testing
- Multi-language support
- 2.4" TFT LCD display with backlight
- ABS acid-proof plastic construction
- 25.98" irreplaceable test cable
- Compatible with 12V battery types: Regular Flooded, Gel, AGM, EFB, Lithium
- Applicable to cars, motorcycles, lawn mowers, Group 31, commercial vehicles 4D/8D
Model Variants
BST-860S, BST-560S
Specifications
| Specifications | BST-560S | BST-860S |
|---|---|---|
| Display | 2.4" TFT LCD display with backlight | 2.4" TFT LCD display with backlight |
| Working Temperature | 18°C – 60°C | 18°C – 60°C |
| Test Cable | 25.98" irreplaceable test cable | 25.98" irreplaceable test cable |
| Case Material | ABS acid-proof plastic | ABS acid-proof plastic |
| Dimensions | 155×85×32mm | 195×100×40mm |
| Weight | 315g | 462g |
| Printing | QR scan for mobile viewing | Built-in thermal printer + QR scan |
| Charging System Test | 12V vehicle systems | 12V/24V vehicle systems |
| Additional Features | Rectifier Diode Test | Advanced reporting capabilities |
